Foot pedal attachment FOR DOMESTIC USE ONLY

Ph: 02 6622 7111   Fax: 02 6622 7131   Email:





Custom-built heavy-duty vertical-lift bin-tipper

Lift up to 750kgs.

A safe viable alternative to conveyors for cost effective lifting and emptying product up to a height of 6 metres ... simple to use ... occupies minimal floor space.

Ideal for a wide range of industries including Bakeries, Food and Fruit Processors, Meat Processors, Grape Growers or Wineries, Fish Farms, Nut Farms and Processing Factories, Demolition Industry, Theme Parks, Mining Industry, Engineering Industry etc.

Custom-built binlifter to suit specific requirements:
*Lift height
*Weight Capacity
*Container to be lifted/emptied
*Power Supply
*Frame
*Mobility
*Chute





Empty up to 750kg weight
Hydraulic pressure-relief valve prevents the binlifter overloading. Flow control valve accurately regulates lowering speed at all times.




Tipping Height
Custom-built to required height up to 6 metres.






Maintenance-Free
Heavy-duty bin emptiers do not require regular maintenance and have a history of proven reliability.






Safety Guarding Panels
Guarded to at least 2.5 metres high on both sides.

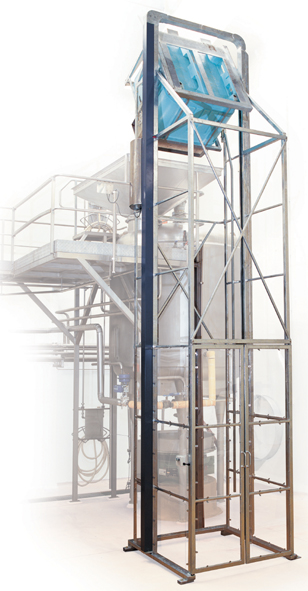

Model Shown (Right):
• 600kg bin capacity
• 5.3 metre tipping height
Bin dimensions:
• 1050L x 1220W x 850W

bin tipper custom built height, weight capacity and cradle to sui specific container

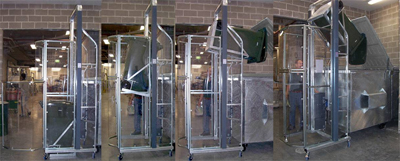

Unique tipping action
Bins raised vertically, then gently rotated around the lip of your hopper. Action can be stopped to allow gradual emptying of product.





Galvanised or
stainless steel options
Standard machines have fully hot-dip galvanised steel frames.
Stainless steel option available for entire machine or some parts eg. bin-cradle or sheetmetal covers.





Electrically interlocked doors
The binlifter WILL NOT OPERATE unless the door is closed and remains closed. The machine stops instantly if the door is opened during operation.





Mobility
Four heavy-duty castors or lugs for bolting to floor. Castors include 2 lock-down feet to ensure stability during emptying process.

Range of Power Options Available
 ...3-phase
...single phase
...gel cell battery
Simple Operation
Wheel bin/hopper in, press ‘Up’ to lift and empty. Press ‘Down’ to return cradle to ground level. Machine can be stopped at any time during operation by removing finger from the button. Machine will cease operation IMMEDIATELY if door is opened during operation.










Every Mega Dumper binlifter is custom built, taking into account
tipping height and the size, shape and weight of the bin.

General Specifications:
Overall Width:
Normally 'bin width' + 400mm (excluding castors)
Overall Length:
Normally 'bin width' + 300mm
Overall Height:
Normally tipping height + 1800mm
Weight Capacity:
3 models available ... 450kg, 600kg, 750kg
For bins up to 300 kg, see the range of Dumpmasters)
Tipping Height:
Available at any height up to 6 metres


bin lifter to empty product, cradle buit to suit specific application







bin lifter to empty waste from 660 litre container into outdoor skip

Click here

To view the operation of a 240/660 litre Dual-Cradle bin tipper presently in operation at a major theme park on the Gold Coast.







bin tipper - view operation, in - up - bin pulled forward - empty
Click here

Vertical lift wheelie bin tipper.
